Z-Axis High-Precision Fine Tuning Shear-Type Large-Stroke Manual Lifting Platform PT-SD408S
Z-axis manual lifting platform PT-SD408S, the main material of the product is high-strength aluminum alloy, the surface is oxidized black, the shear-type lifting structure is adopted, the precision grinding screw rod is driven, the scale is equipped, the self-locking function is provided, the structure is stable, the adjustment is convenient and fast, and it is suitable for the manual adjustment occasions of large stroke rough positioning.
Features of scissor-type manual lifting platform

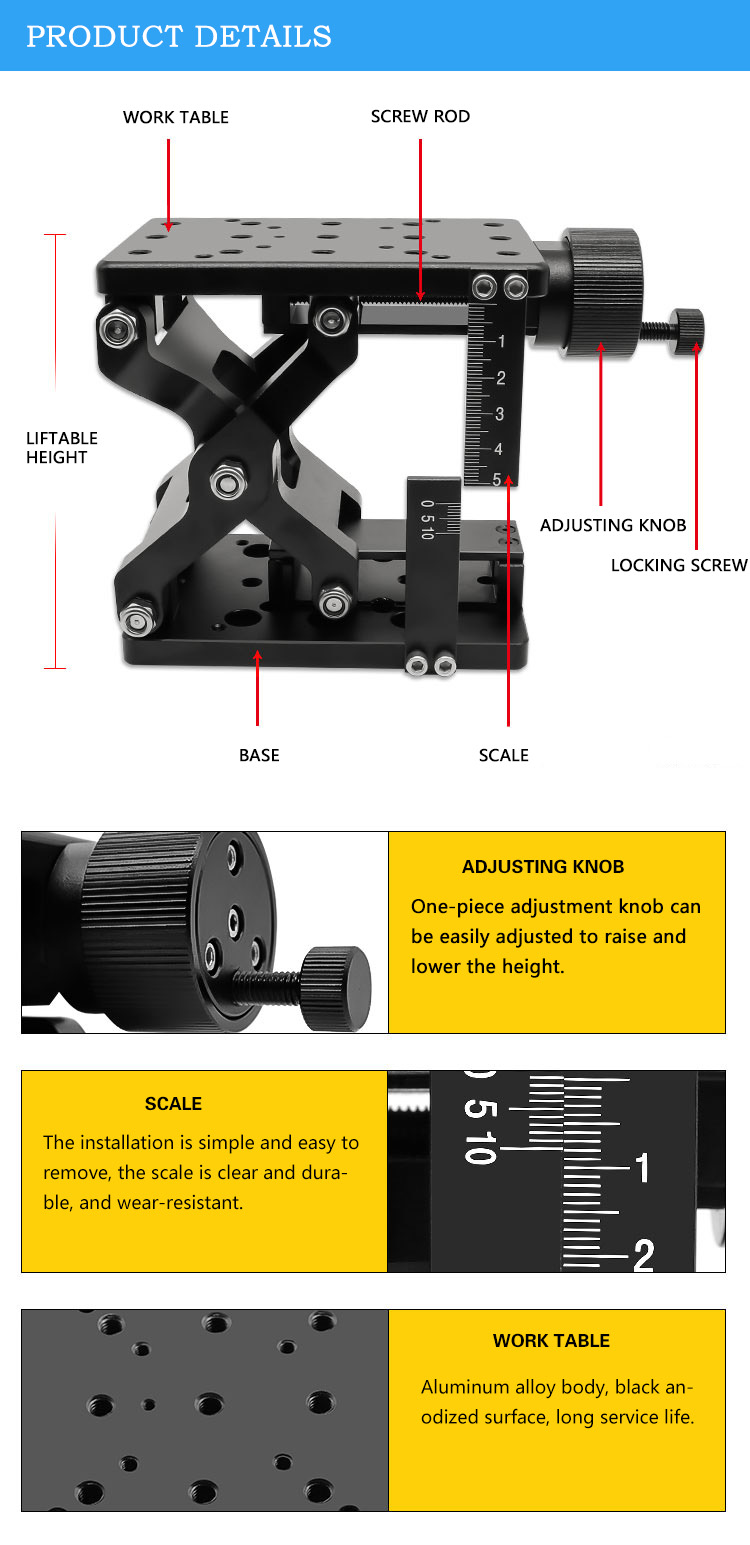

1.Scissor-type lifting mechanism, compact structure, large travel, strong load capacity;
2.It is driven by fine grinding screw rod and adjusted smoothly;
3.The main material is high-strength aluminum alloy, with black oxide treatment on the surface, good durability and beautiful appearance;
4.Equipped with locking handwheel, safe and reliable.
Product specification:

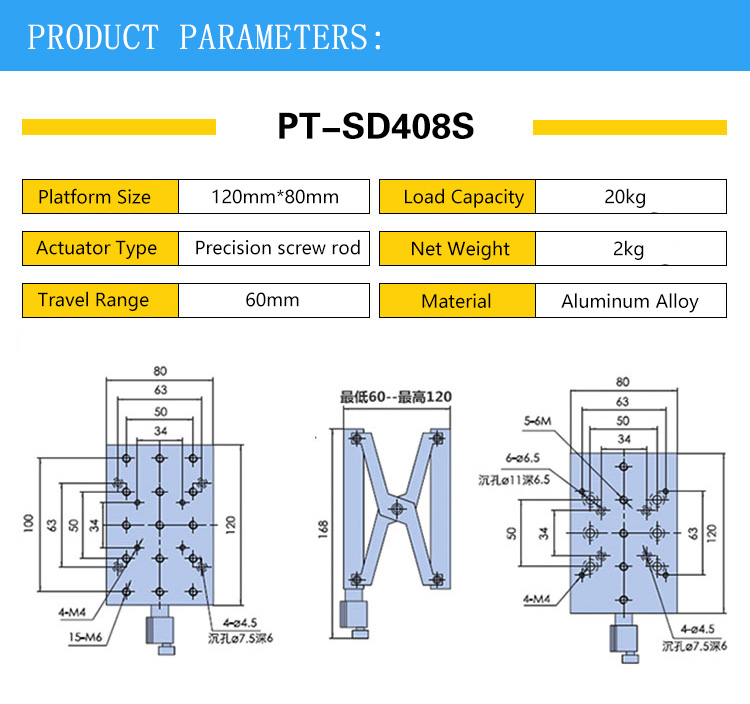

| Item Number | PT-SD408S |
| Travel Range | 60mm |
| Actuator Type | Precision Whet Thread |
| Min Adjust Distance | 5μm |
| Platform Size | 120mm*80mm |
| Load Capacity | 20kg |
| Weight | 2kg |
| Scale Ruler | With Scale Ruler |
| Material – Finish | Aluminum Alloy - Black-Anodized |
The structural principle of shear fork lifting platform
Shear fork lifting platform, the lifting mechanism is stacked into two sets of X' shaped boom stack, the upper boom at both ends of the bottom surface of the working platform mechanical connection, the two ends of the lower arm mechanical connected to the two ends of the chassis surface, the central part of the chassis is provided with a hydraulic mechanism, the piston rod of the hydraulic cylinder is connected to the supporting track. When working, the expansion and folding of the scissors are pushed through the expansion and folding, and the expansion and folding of the scissor-type support frame is used to complete the lifting of the platform.
Shear fork lift platform. Rise and fall are smooth movement, even if the pipe will only slow down, waste some hydraulic oil, so the scissoring fork lift as a safe lifting machinery, widely popular.
